■ 시험 환경
- OpenBSD
WAN IP: 10.10.10.51
LAN IP : 192.168.10.254
LAN Network : 192.168.10.0/24
Test PC : 192.168.10.2
- OpenWRT Router
WAN IP : 10.10.10.250
LAN IP : 192.168.1.1
LAN Network : 192.168.1.0/24
Test PC : 192.168.1.2
■ OpenWRT Router 설정
▶ /etc/config/ipsec
# /etc/config/ipsec
config 'ipsec'
option 'zone' 'vpn'
list listen ''
config 'remote' 'acme'
option 'enabled' '1'
option 'gateway' '10.10.10.51'
option 'authentication_method' 'psk'
option 'pre_shared_key' '7d5813ab'
list 'p1_proposal' 'pre_g2_aes_sha1'
list 'tunnel' 'acme_lan'
option 'local_identifier' 'ac2014@_utm'
option 'remote_identifier' 'charon@_utm'
config 'p1_proposal' 'pre_g2_aes_sha1'
option 'encryption_algorithm' 'aes256'
option 'hash_algorithm' 'sha1'
option 'dh_group' 'modp2048'
config 'tunnel' 'acme_lan'
option 'local_subnet' '192.168.1.0/24'
option 'remote_subnet' '192.168.10.0/24'
option 'p2_proposal' 'g2_aes_sha1'
config 'p2_proposal' 'g2_aes_sha1'
option 'encryption_algorithm' 'aes256'
option 'authentication_algorithm' 'sha1'
option 'pfs_group' 'modp2048'
------------------------------------------------------------------------------
▶ /etc/init.d/ipsec
#!/bin/sh /etc/rc.common
#/etc/init.d/ipsec - version 4
NAME=ipsec
START=60
STOP=60
. /lib/functions.sh
FileSecrets=/var/ipsec/ipsec.secrets
FileConn=/var/ipsec/ipsec.conf
FileCommon=/var/ipsec/strongswan.conf
FolderCerts=/var/ipsec/ipsec.d
ConfigUser()
{
local enabled
local xauth
local name
local password
local crt_subject
config_get_bool enabled $1 enabled 0
[[ "$enabled" == "0" ]] && return
config_get_bool xauth $1 xauth 0
config_get name $1 name ""
config_get password $1 password ""
if [ $xauth -eq 1 -a "$name" != "" -a "$password" != "" ]; then
echo "$name : XAUTH \"$password\"" >> $FileSecrets
fi
}
ConfigPhase1() {
local encryption_algorithm
local hash_algorithm
local dh_group
config_get encryption_algorithm "$1" encryption_algorithm
config_get hash_algorithm "$1" hash_algorithm
config_get dh_group "$1" dh_group
Phase1Proposal=${Phase1Proposal}","${encryption_algorithm}-${hash_algorithm}-${dh_group}
}
ConfigTunnel() {
local local_subnet
local local_nat
local remote_subnet
local p2_proposal
local pfs_group
local encryption_algorithm
local authentication_algorithm
config_get local_subnet "$1" local_subnet
config_get local_nat "$1" local_nat ""
config_get remote_subnet "$1" remote_subnet
config_get p2_proposal "$1" p2_proposal
config_get pfs_group "$p2_proposal" pfs_group
config_get encryption_algorithm "$p2_proposal" encryption_algorithm
config_get authentication_algorithm "$p2_proposal" authentication_algorithm
[[ "$local_nat" != "" ]] && local_subnet=$local_nat
p2_proposal="${encryption_algorithm}-${authentication_algorithm}-${pfs_group}"
echo "conn $ConfigName-$1" >> $FileConn
echo " keyexchange=ike" >> $FileConn
echo " ikelifetime=24h" >> $FileConn
echo " keylife=23h" >> $FileConn
echo " rekeymargin=5m" >> $FileConn
echo " keyingtries=100" >> $FileConn
echo " mobike=no" >> $FileConn
echo " rekey=no" >> $FileConn
echo " reauth=no" >> $FileConn
echo " left=$LocalGateway" >> $FileConn
echo " right=$RemoteGateway" >> $FileConn
echo " leftsubnet=$local_subnet" >> $FileConn
if [ "$AuthenticationMethod" = "psk" ]; then
echo " authby=secret" >> $FileConn
echo " rightsubnet=$remote_subnet" >> $FileConn
echo " auto=start" >> $FileConn
elif [ "$AuthenticationMethod" = "xauth_psk_server" ]; then
echo " authby=xauthpsk" >> $FileConn
echo " xauth=server" >> $FileConn
echo " modeconfig=pull" >> $FileConn
echo " rightsourceip=$remote_subnet" >> $FileConn
echo " auto=add" >> $FileConn
fi
if [ "$LocalIdentifier" != "" ]; then
echo " leftid=$LocalIdentifier" >> $FileConn
fi
if [ "$RemoteIdentifier" != "" ]; then
echo " rightid=$RemoteIdentifier" >> $FileConn
fi
echo " auth=esp" >> $FileConn
echo " esp=$p2_proposal" >> $FileConn
echo " ike=$Phase1Proposal" >> $FileConn
echo " type=tunnel" >> $FileConn
}
ConfigStrongSwan() {
echo "threads = 16" > $FileCommon
echo "replay_window = 32" >> $FileCommon
echo "dos_protection = no" >> $FileCommon
echo "block_threshold = 2000" >> $FileCommon
echo "cookie_threshold = 2000" >> $FileCommon
echo "init_limit_half_open = 2000" >> $FileCommon
echo "retransmit_timeout = 60" >> $FileCommon
echo "retransmit_tries = 30" >> $FileCommon
echo "install_virtual_ip = no" >> $FileCommon
echo "install_routes = no" >> $FileCommon
echo "close_ike_on_child_failure = yes" >> $FileCommon
echo "ikesa_table_size = 512" >> $FileCommon
echo "ikesa_table_segments = 16" >> $FileCommon
echo "reuse_ikesa = no" >> $FileCommon
}
ConfigRemote() {
local enabled
local gateway
local pre_shared_key
local authentication_method
local local_identifier
local remote_identifier
ConfigName=$1
config_get_bool enabled "$1" enabled 0
[[ "$enabled" == "0" ]] && return
config_get gateway "$1" gateway
config_get pre_shared_key "$1" pre_shared_key
config_get authentication_method "$1" authentication_method
config_get local_identifier "$1" local_identifier
config_get remote_identifier "$1" remote_identifier
AuthenticationMethod=$authentication_method
LocalIdentifier=$local_identifier
RemoteIdentifier=$remote_identifier
RemoteGateway=$gateway
if [ "$RemoteGateway" = "any" ]; then
RemoteGateway="%any"
LocalGateway=`ip route get 1.1.1.1 | awk -F"src" '/src/{gsub(/ /,"");print $2}'`
else
LocalGateway=`ip route get $RemoteGateway | awk -F"src" '/src/{gsub(/ /,"");print $2}'`
fi
echo "$LocalGateway $RemoteGateway : PSK \"$pre_shared_key\"" >> $FileSecrets
Phase1Proposal=""
config_list_foreach "$1" p1_proposal ConfigPhase1
Phase1Proposal=`echo $Phase1Proposal | cut -b 2-`
config_list_foreach "$1" tunnel ConfigTunnel
}
PrepareEnvironment() {
for d in cacerts aacerts ocspcerts crls acerts; do
mkdir -p $FolderCerts/$d 2>/dev/null
done
if [ ! -L /etc/ipsec.d ]; then
rm -rf /etc/ipsec.d 2>/dev/null
ln -s $FolderCerts /etc/ipsec.d
fi
if [ ! -L /etc/ipsec.secrets ]; then
rm /etc/ipsec.secrets 2>/dev/null
ln -s $FileSecrets /etc/ipsec.secrets
fi
if [ ! -L /etc/strongswan.conf ]; then
rm /etc/strongswan.conf 2>/dev/null
ln -s $FileCommon /etc/strongswan.conf
fi
if [ ! -L /etc/ipsec.conf ]; then
rm /etc/ipsec.conf 2>/dev/null
ln -s $FileConn /etc/ipsec.conf
fi
echo "# generated by /etc/init.d/ipsec" > $FileConn
echo "version 2" > $FileConn
echo "config setup" >> $FileConn
echo " charondebug = \"ike 2,knl 2\"" >> $FileConn
echo "# generated by /etc/init.d/ipsec" > $FileSecrets
}
CheckInstallation() {
if [ ! -x /usr/sbin/ip ]; then
echo /usr/sbin/ip missing
echo install with \"opkg install ip\"
exit
fi
for f in aes authenc cbc hmac md5 sha1; do
if [ `opkg list kmod-crypto-$f | wc -l` -eq 0 ]; then
echo kmod-crypto-$f missing
echo install with \"opkg install kmod-crypto-$f --nodeps\"
exit
fi
done
for f in aes gmp hmac kernel-netlink md5 random sha1 updown attr resolve; do
if [ ! -f /usr/lib/ipsec/plugins/libstrongswan-${f}.so ]; then
echo /usr/lib/ipsec/plugins/$f missing
echo install with \"opkg install strongswan-mod-$f --nodeps\"
exit
fi
done
}
start() {
CheckInstallation
PrepareEnvironment
ConfigStrongSwan
config_load users
config_foreach ConfigUser user
config_load ipsec
config_foreach ConfigRemote remote
/usr/sbin/ipsec start
}
stop() {
/usr/sbin/ipsec stop
}
------------------------------------------------------------------------------

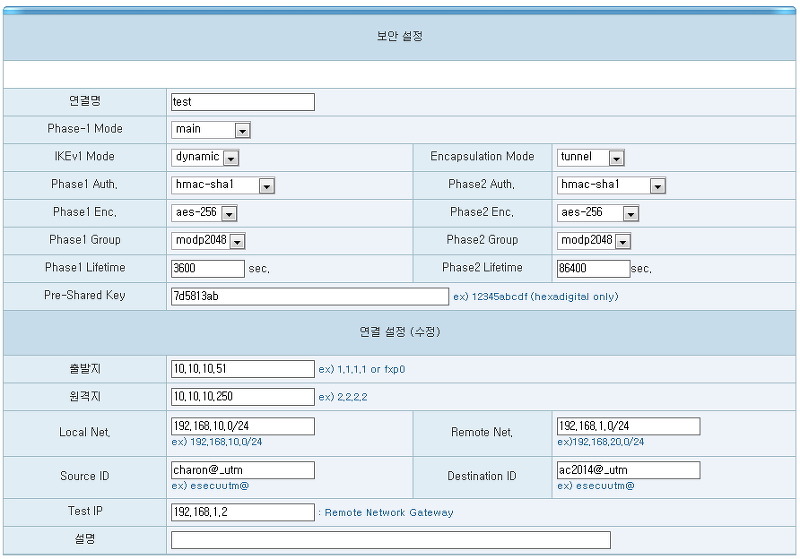

■ OpenBSD 설정
▶ /var/_utm/etc/ipsec.conf
#####################################################################
# Setup the IPSec IKE - 'test'
#####################################################################
ike dynamic esp tunnel from 192.168.10.0/24 to 192.168.1.0/24 local 10.10.10.51 peer 10.10.10.250 \
main auth hmac-sha1 enc aes-256 group modp2048 lifetime 3600 \
quick auth hmac-sha1 enc aes-256 group modp2048 lifetime 86400 \
srcid 'charon@_utm' dstid 'ac2014@_utm' psk "7d5813ab" \
tag 'IPSecIKE0001'
▶ 라우팅 테이블 추가
route add -inet 192.168.1.0/24 192.168.10.254
▶ VPN 연결 확인 (OpenWRT)
root@OpenWrt:/etc/config# ipsec statusall
Status of IKE charon daemon (strongSwan 5.0.0, Linux 3.3.8, mips):
uptime: 3 minutes, since May 02 09:25:17 2014
malloc: sbrk 118784, mmap 0, used 101856, free 16928
worker threads: 6 of 16 idle, 9/1/0/0 working, job queue: 0/0/0/0, scheduled: 3
loaded plugins: charon pkcs11 aes des sha1 sha2 md5 random nonce x509 revocation constraints pubkey pkcs1 pkcs8 pgp dnskey pem fips-prf gmp xcbc hmac attr kernel-netlink resolve socket-default stroke updown xauth-generic dhcp uci
Listening IP addresses:
10.10.10.250
192.168.1.1
Connections:
acme-acme_lan: 10.10.10.250...10.10.10.51 IKEv1
acme-acme_lan: local: [10.10.10.250] uses pre-shared key authentication
acme-acme_lan: remote: [10.10.10.51] uses pre-shared key authentication
acme-acme_lan: child: 192.168.1.0/24 === 192.168.10.0/24 TUNNEL
Security Associations (2 up, 0 connecting):
acme-acme_lan[2]: ESTABLISHED 101 seconds ago, 10.10.10.250[10.10.10.250]...10.10.10.51[10.10.10.51]
acme-acme_lan[2]: IKEv1 SPIs: 4eb6dc939cb992cc_i aca412bc4ed74980_r*, pre-shared key reauthentication in 2 hours
acme-acme_lan[2]: IKE proposal: AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_2048
acme-acme_lan{1}: INSTALLED, TUNNEL, ESP SPIs: c9c25b9c_i 8b8a1502_o
acme-acme_lan{1}: AES_CBC_256/HMAC_SHA1_96, 0 bytes_i, 0 bytes_o, rekeying in 43 minutes
acme-acme_lan{1}: 192.168.1.0/24 === 192.168.10.0/24
acme-acme_lan[1]: CONNECTING, 10.10.10.250[%any]...10.10.10.51[%any]
acme-acme_lan[1]: IKEv1 SPIs: f661063fe5d86514_i* 0000000000000000_r
acme-acme_lan[1]: Tasks queued: QUICK_MODE
acme-acme_lan[1]: Tasks active: ISAKMP_VENDOR ISAKMP_CERT_PRE MAIN_MODE ISAKMP_CERT_POST ISAKMP_NATD
▶ VPN 연결 확인 (OpenBSD)
# ipsecctl -vsa
FLOWS:
flow esp in from 192.168.1.0/24 to 192.168.10.0/24 peer 10.10.10.250 srcid charon@_utm dstid ac2014@_utm type use
flow esp out from 192.168.10.0/24 to 192.168.1.0/24 peer 10.10.10.250 srcid charon@_utm dstid ac2014@_utm type require
SAD:
esp tunnel from 10.10.10.250 to 10.10.10.51 spi 0x8419c640 auth hmac-sha1 enc aes-256
sa: spi 0x8419c640 auth hmac-sha1 enc aes
state mature replay 16 flags 0x4<tunnel>
lifetime_cur: alloc 0 bytes 0 add 1399429397 first 0
lifetime_hard: alloc 0 bytes 0 add 86400 first 0
lifetime_soft: alloc 0 bytes 0 add 77760 first 0
address_src: 10.10.10.250
address_dst: 10.10.10.51
identity_src: type ufqdn id 0: ac2014@_utm
identity_dst: type ufqdn id 0: charon@_utm
src_mask: 255.255.255.0
dst_mask: 255.255.255.0
protocol: proto 0 flags 0
flow_type: type use direction in
src_flow: 192.168.1.0
dst_flow: 192.168.10.0
tag: IPSecIKE0001
esp tunnel from 10.10.10.51 to 10.10.10.250 spi 0xc18b0b10 auth hmac-sha1 enc aes-256
sa: spi 0xc18b0b10 auth hmac-sha1 enc aes
state mature replay 16 flags 0x4<tunnel>
lifetime_cur: alloc 0 bytes 18732 add 1399429397 first 1399429397
lifetime_hard: alloc 0 bytes 0 add 86400 first 0
lifetime_soft: alloc 0 bytes 0 add 77760 first 0
address_src: 10.10.10.51
address_dst: 10.10.10.250
identity_src: type ufqdn id 0: charon@_utm
identity_dst: type ufqdn id 0: ac2014@_utm
src_mask: 255.255.255.0
dst_mask: 255.255.255.0
protocol: proto 0 flags 0
flow_type: type use direction out
src_flow: 192.168.10.0
dst_flow: 192.168.1.0
lifetime_lastuse: alloc 0 bytes 0 add 0 first 1399429621
tag: IPSecIKE0001
